VK570 – EC/QREC Ordinary Hazard Upright Sprinkler (K14.0)

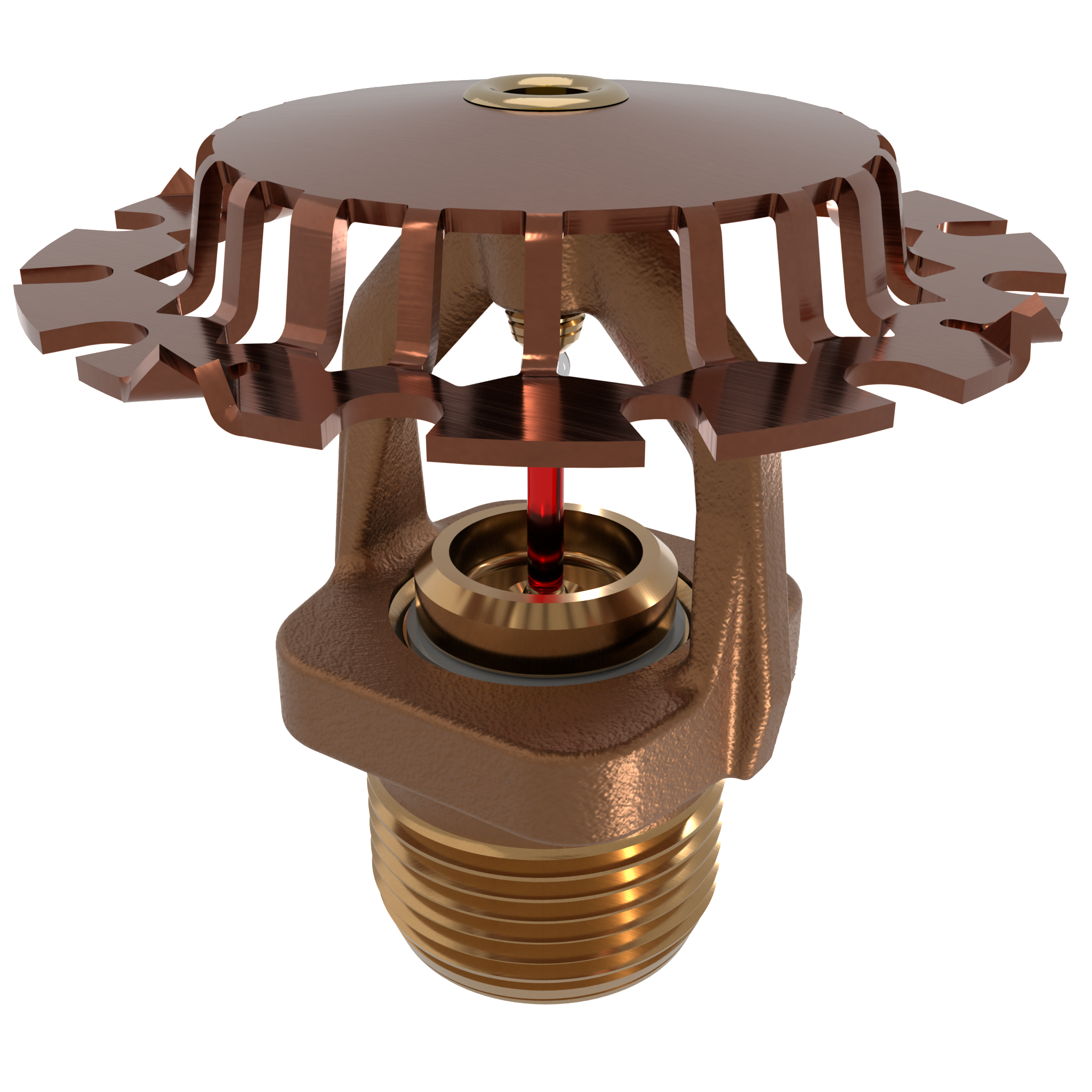

Viking is a proud world leader in the design and manufacturing of life-saving fire sprinklers. The VK570 EC/QREC Ordinary Hazard Upright Sprinkler is just one of thousands of industry-leading sprinklers available to customers! The VK570 is a thermosensitive glass bulb spray sprinkler equipped with a 14.0 (202 metric) nominal K-Factor and a special deflector. The Polyester coatings can be used in decorative applications where colors are desired. In addition, the ENT coating has been investigated for installation in corrosive environments and is listed as indicated in the Approval Charts.Sift through virtually every sprinkler in a flash with the revolutionary Sprinkler Selector! Select various criteria, such as K-factor, occupancy type, orientation, temperature and more, to get the part number you need. Test it out today and streamline your projects!
Technical Specifications
| Details | Specifications |
|---|---|
| K-Factor | 14.0 (202) |
| Max Pressure | 175 psi (12 bar) |
| Occupancy Type | Ordinary Hazard |
| Part Number | 13840 |
| Response Type | Standard/Quick |
| Thread Size | 3/4" NPT (20 mm BSP) |
Technical Resources
| Document Title | Document Type | Action |
|---|---|---|
| Data Center Solutions Flyer | Marketing Literature | Download |
| Dry Sprinklers Flyer | Marketing Literature | Download |
| Figure 1 | Drawings (DWG) | Download |
| Figure 2 | Drawings (DWG) | Download |
| Lithium-ion Protection Flyer | Storage Sprinklers | Download |
| NYC Dept. of Buildings | Approval Certificates | Download |
| Technical Data Sheet | Technical Data and Instructions | Download |
| UL | Approval Certificates | Download |
| Underwriters Laboratories | Approval Certificates | Download |
| Viking – Extended Coverage – Upright_Revit2017 | Revit® Files | Download |
| Viking – Extended Coverage – VK570_Revit2017 | Revit® Files | Download |
| VKV Deluge Valve Model F | Revit® Files | Download |
